Fittings - Pipe Nipples

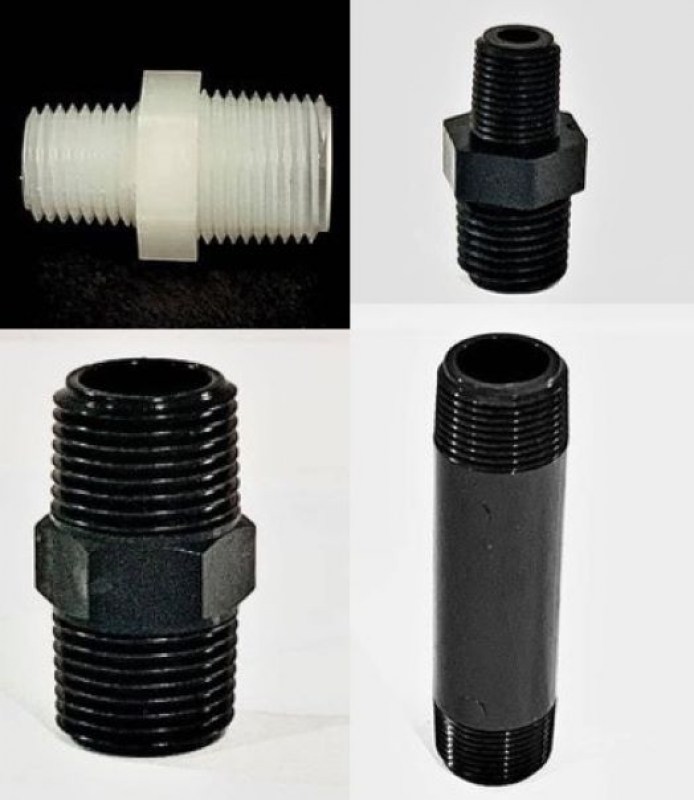

Hex nipples in nylon, polypropylene, PVC and Kynar ( PVDF )
Description
Hex nipples in nylon, polypropylene, PVC and Kynar ( PVDF )
| Male x Male Thread | White Nylon | Black Polypropylene |
|---|---|---|
| 1/8" x 1/8" | NIP-2-2 | NIP-2-2-BK-P |
| 1/4"x1/8" | NIP-4-2 | NIP-4-2-BK-P |
| 1/4"x1/4" | NIP-4-4 | NIP-4-4-BK-P |
| 3/8"x1/8" | NIP-6-2 | NIP-6-2-BK-P |
| 3/8" X 1/4" | NIP-6-4 | NIP-6-4-BK-P |
| 3/8" X 3/8" | NIP-6-6 | NIP-6-6-BK-P |
| 1/2" X 1/8" | NIP-8-2 | NIP-8-2-BK-P |
| 1/2" X 1/4" | NIP-8-4 | NIP-8-4-BK-P |
| 1/2" X 3/8" | NIP-8-6 | NIP-8-6-BK-P |
| 1/2" X 1/2" | NIP-8-8 | NIP-8-8-BK-P |
| 3/4" X 3/8" | NIP-12-6 | NIP-12-6-BK-P |
| 3/4" X 1/2" | NIP-12-8 | NIP-12-8-BK-P |
| 1" X 1" | NIP-16-16 | NIP-16-16-BK-P |
| 1 1/4" X 1 1/4" | NIP-20-20 | NIP-20-20-BK-P |
| 1 1/2" X 1 1/2" | NIP-24-24 | NIP-24-24-BK-P |
| 2" X 2" | NIP-32-32 | NIP-32-32-BK-P |
PVC Threaded Pipe Nipples
| Male x Male Thread | Description | Part No. |
|---|---|---|
| 1/4" X 1/4" NPT | Grey PVC; 2 inches long | NIP-4-2"PVC |
| 3/4" X 3/4" NPT | Grey PVC; 2 inches long | NIP-12-2"-PVC |
| 3/4" X 3/4" NPT | Grey PVC; 2 1/2 inches long | NIP-12-2.5"-PVC |
| 3/4" X 3/4" NPT | Grey PVC; 3 inches long | NIP-12-3"-PVC |
| 3/4" X 3/4" NPT | Grey PVC; 3 1/2 inches long | NIP-12-3.5"-PVC |
| 3/4" X 3/4" NPT | Grey PVC; 4 inches long | NIP-12-4"-PVC |
| 1" X 1" NPT | Grey PVC; 3 inches long | NIP-16-3"PVC |
| 1" X 1" NPT | Grey PVC; 4 inches long | NIP-16-4"PVC |
| 1" X 1" NPT | Grey PVC; 5 inches long | NIP-16-5"PVC |
Kynar ( PVDF ) Threaded Hex Nipples.
| Thread x Thread | Part No. |
|---|---|
| 1/8" | NIP-2-2K |
| 1/4" | NIP-4-4K |
| 3/8" | NIP-6-6K |
| 1/2" | NIP-8-8K |
