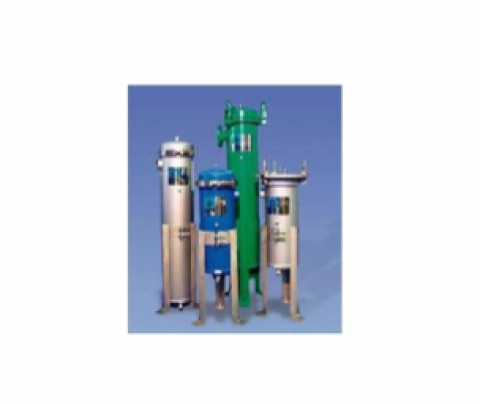

Bag Filter Housings & Accessories
Various bag filter housings and accessories.

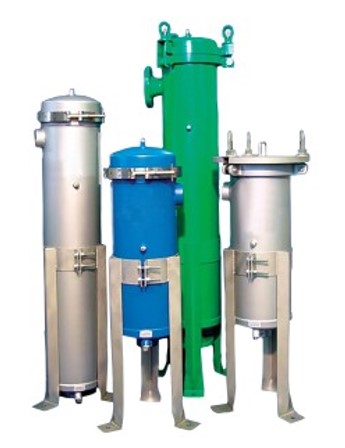

Pentair Stainless Steel Bag Filter Housings.
Working Pressure up to 100 PSI / 690 kPa
#1 size flow rate up to 15 m3/hr - 250 LPM
#2 size flow rate up to 30 m3/hr - 500 LPM
| Pentair Stainless Steel Bag Filter Housings | Part No. |
|---|---|
| #1 bag housing, 304 S/S; 2" BSP; clamp closure; side in / bottom out ports with adjustable legs | BFH-1-304-2BSP |
| #2 bag housing, 304 S/S; 2" BSP; clamp closure; side in / bottom out ports with adjustable legs | BFH-2-304-2BSP |
| #1 bag housing, 316 S/S; 2" BSP; clamp closure; side in / bottom out ports with adjustable legs | BFH-1-316-2BSP |
| #2 bag housing, 316 S/S; 2" BSP; clamp closure; side in / bottom out ports with adjustable legs | BFH-2-316-2BSP |
| Pentair Stainless Steel Bag Filter Housings Spare Parts | Part No. |
|---|---|
| #1 & #2 bag housing Buna N lid seal | OR-BFH-P-LID |
| #1 & #2 bag housing Buna N basket seal | OR-BFH-P-BASKET |
| #1 bag housing replacement basket | |
| #2 bag housing replacement basket |
Shelco Stainless Steel Bag Filter Housings.
U.S. manufactured
Designed for industrial and commercial applications
Heavy duty construction for maximum durability
Standard 1/8" perferated stainless steel baskets
Adjustable stainless steel leg assemblies
Pressure rated to 150 PSI @ 149 C / 1035 kPa
Standard poly-coat finish on exterior surfaces
| Shelco Stainless Steel Bag Filter Housings | Part No. |
|---|---|
| #1 bag housing, 304L S/S; 2" BSP; clamp closure; side in / bottom out ports with adjustable legs | BFS-1C-2-BSP |
| #1 bag housing, 316L S/S; 2" BSP; clamp closure; side in / bottom out ports with adjustable legs | BFS-1C-2-316-BSP |
| #2 bag housing, 304L S/S; 2" BSP; clamp closure; side in / bottom out ports with adjustable legs | BFS-2C-2-BSP |
| #2 bag housing, 316L S/S; 2" BSP; clamp closure; side in / bottom out ports with adjustable legs | BFS-2C-2-316-BSP |
| #3 bag housing, 304L S/S; 1 1/2" BSP; clamp closure; side in / bottom out ports | BFS-3C-1-BSP |
| #3 bag housing, 316L S/S; 1 1/2" BSP; clamp closure; side in / bottom out ports | BFS-3C-1-316-BSP |
| #4 bag housing, 304L S/S; 1 1/2" BSP; clamp closure; side in / bottom out ports | BFS-4C-1-BSP |
| #4 bag housing, 316L S/S; 1 1/2" BSP; clamp closure; side in / bottom out ports | BFS-4C-4-316-BSP |
* Swing bolt closures are available for sizes #1 & # 2.
*Side in / side out port configurations option available for all of the above housings.
| Shelco Stainless Steel Bag Filter Housing Lid Gaskets | Part No. |
|---|---|
| #1 bag housing lid gasket; Clamp style; Buna | 8017-B |
| #2 bag housing lid gasket; Clamp style; Buna | 8017-B |
| #3 bag housing lid gasket; Clamp style; Buna | 4078-B-R |
| #4 bag housing lid gasket; Clamp style; Buna | 4078-B-R |
Bag Filter Element Ordering Guide
| Model | Media | Micron | Bag Size | Ring | Optional |
|---|---|---|---|---|---|
|
B-Bag |
EG - Polyester Glazed PG - Polypropylene Galzed NMO - Nylon Monofilament EMO - Polyester Monofilament PMO - Polypropylene Monofilament OA - Oil Absorbent HE - High Efficiency |
1. 200. 3. 250. 5. 300. 10. 400. 25. 600. 50. 800. 75. 1200. 100. 1500. 150. |
1 2 3 4 |
S - Steel SS - Stainless Steel P - Polypropylene PF - Polyprop Flange DS - Draw String |
H-Handle |
Ordering Example ( BPG-5-2PG )
Bag filter element sizes:
#1 - 7" Diameter x 16.5" Long
#2 - 7" Diameter x 32" Long
#3 - 4" Diameter x 8" Long
#4 - 4" Diameter x 14" Long
